A well pressure tank holds water under pressure, so the pump does not start every time a tap opens. As the pump fills the tank, the water squeezes a cushion of air. At the switch's high setting the pump shuts off, and that air pushes water to your taps. The pump starts again when the pressure falls to the low setting.
Based in Riverdale, Big River Drilling installs and replaces well pressure tanks across Fresno, Kings and Tulare counties. We set bladder and galvanized tanks, plus their pressure switches, gauges and check valves. When the pump clicks on and off or the pressure comes and goes, we find out why. Sometimes the tank is fine and the fix is well pump repair.
Tell us about the well or the water problem. We come out, look at the site and give you a free estimate.

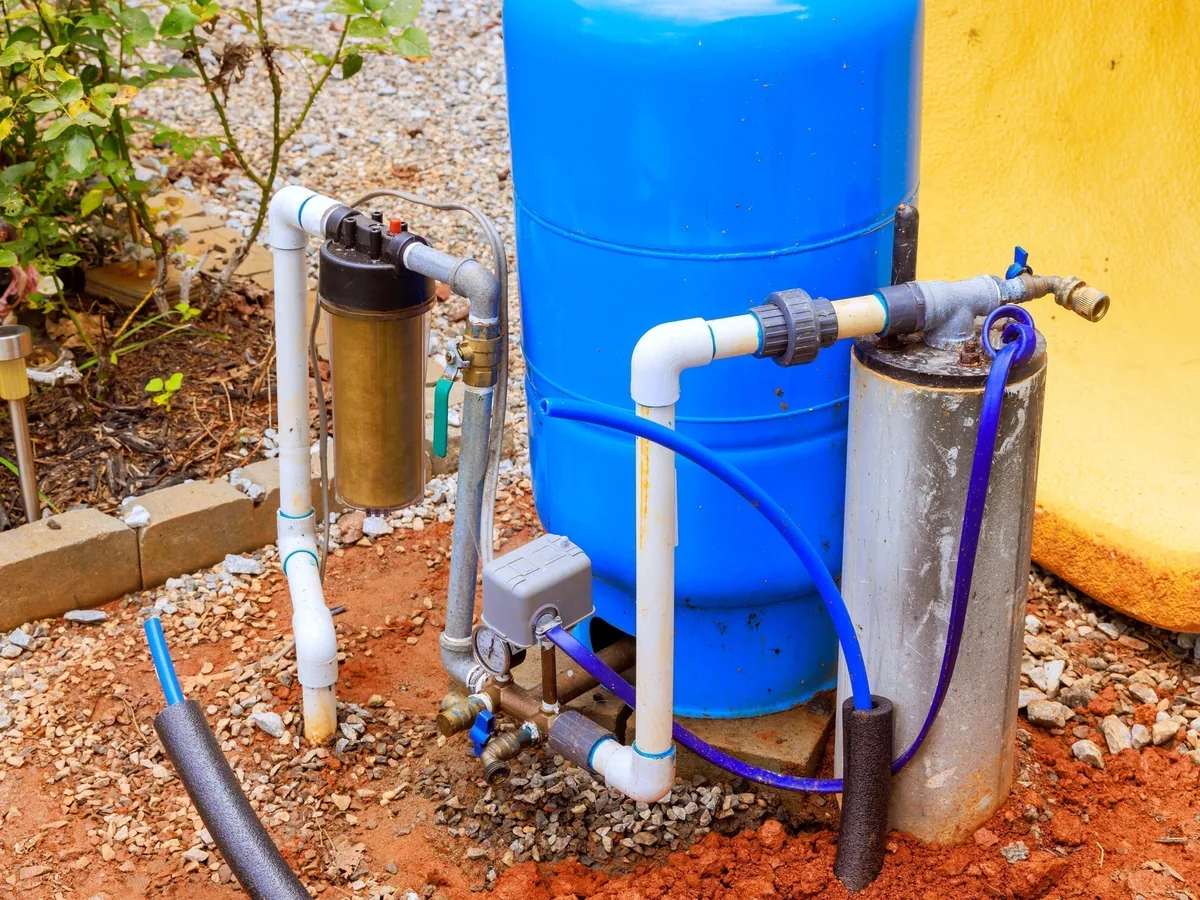

The most common tank design has a bladder or diaphragm inside that keeps the air and the water apart. Because the two stay apart, the tank should hold its air charge. A galvanized tank is the older plain steel design, where air and water share one space. The water slowly soaks up that air, so an air volume control or a recharge has to replace it.
The number that sizes a tank is drawdown, the water it gives between the pump shutting off and starting again. Drawdown is usually much smaller than the tank itself. A common rule sizes the tank to the water the pump makes in 1 to 2 minutes. A bigger tank means fewer pump starts, and that is easier on the pump.

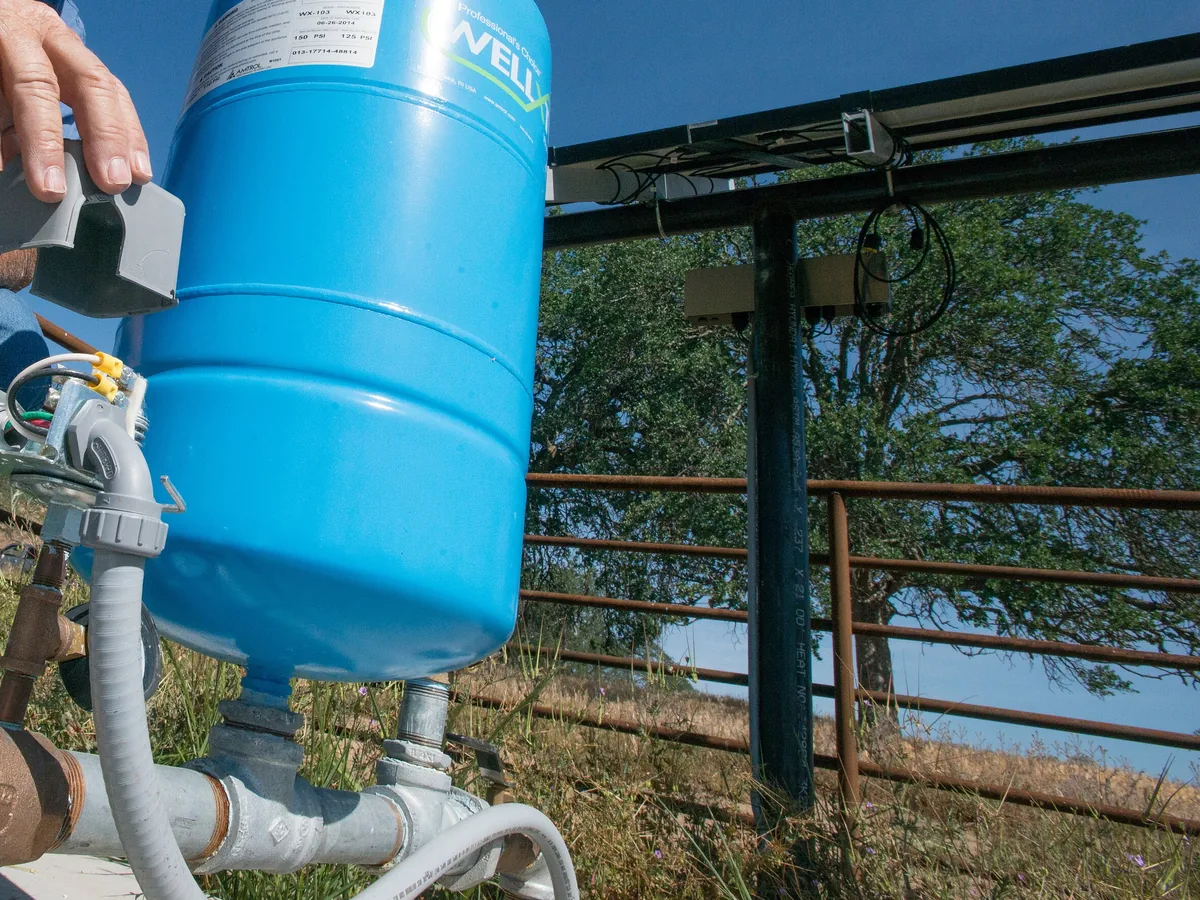

A 40/60 switch, a common setting, starts the pump at 40 psi and stops it at 60. The tank's air pre-charge should sit 2 psi below the start setting, so 38 psi on a 40/60 switch. It is checked with the pump's power off and the tank drained. A new tank's factory charge may not suit your switch, so we set it before the tank goes in.
Short cycling means the pump clicks on and off in quick bursts while water runs. The Water Systems Council names two causes: a waterlogged tank or a bad pressure switch. Most wear on a well pump happens when it starts and stops. Too much cycling can wear out the switch, the pump or the tank early.
A waterlogged tank has lost its air cushion, so it holds back almost no water between pump starts. On a bladder tank, water spitting from the air valve means the bladder has burst. A tank maker's manual calls for a new tank when the shell shows rust or a leak. Galvanized tanks can develop pinhole leaks where the water level rises and falls inside.
A bladder tank that keeps losing its charge may be rusting inside. That is when well pressure tank replacement beats adding air. If short cycling has worn out the pump too, well pump replacement can be part of the same job.
We set tanks on a concrete pad beside the well head, with the control box on a post nearby. The pad gives the tank a level, solid base above the mud. On a new water well, the tank goes in with the pump and the lines.
July afternoons average about 98 degrees in Fresno and Hanford, per the Western Regional Climate Center. One tank maker says to keep the tank out of direct sun, since sun heat can warp non-metal parts. A pump house or a covered pad keeps that sun off the tank and the switch.
